    Lightning Protection Solar System: What You Should Know

    • 5 min read

    In the shifting paradigm towards sustainable energy, solar systems have emerged as green alternatives to conventional power sources. Yet, with their rising popularity, arises the essential task of mitigating potential hazards, notably lightning strikes. Despite PV systems not escalating the likelihood of lightning strikes, safeguarding them from such incidents or related surges is of paramount importance.

    In this guide, we will explore the lightning protection solar system, covering types of protection, their functionality, and installation processes. If you are worrying about lighting striking solar panels, join us as we introduce effective lightning protection measures for safeguarding your investment and ensuring sustained energy efficiency.

    What is Lightning Protection for Solar Systems?

    Lightning protection for solar systems, including balcony power plants, encompasses a suite of measures and devices designed to shield solar installations from damage caused by lightning strikes. These systems aim to mitigate risks associated with lightning-induced surges in voltage and current, which could harm solar panels, inverters, and other system components. By deploying techniques like surge protection, grounding, lightning arrestors, and shielding, lightning protection systems minimize the impact of lightning strikes, ensuring the continued operation and safety of solar energy systems.

    Why is Lightning Protection Important for Solar Systems?

    Lightning protection holds paramount importance for solar systems due to several reasons:

    • Equipment Protection:Solar panels and inverters are susceptible to damage from lightning strikes, leading to electrical surges, overheating, and physical harm. Implementing lightning protection measures safeguards these components, ensuring longevity and functionality.
    • System Reliability:Solar installations are often situated in exposed locations prone to lightning strikes, risking downtime and reduced energy production. Effective lightning protection mitigates these risks, ensuring uninterrupted operation and optimal system performance.
    • Safety:Lightning strikes pose safety hazards to individuals and property near solar installations. Implementing robust lightning protection measures enhances safety by mitigating risks of fires and electric shocks.

    Types of Lightning Protection are Available for Solar Systems

    Lightning protection for solar systems is crucial for safeguarding both solar panels and associated electrical components. Common types of lightning protection include:

    Photovoltaic System with Separate Lightning Protection System

    Photovoltaic systems equipped with a separate lightning protection system ensure comprehensive safety. The lightning arrester, strategically placed to cover modules, frames, and cables, redirects lightning currents away from the system. Crucially, lightning protection cables must maintain a distance of 0.5 to one meter from PV components. The mounting frame is separately grounded, connecting to the building's electrical system. Avoid direct connections between the frame and lightning protection cables. Employ type 2 surge protection switches before and after the inverter to safeguard against overvoltages induced by lightning strikes, further fortifying the system's resilience.

    Photovoltaic System with Lightning Protection System (with Shielding)

    Photovoltaic systems integrated with lightning protection systems, including shielding, ensure module safety from direct lightning strikes. Interconnected solar modules mitigate partial lightning currents during strikes. Shielded DC cables, routed along the house wall to the ground and indoors, minimize system impact. Metal housings in connection and distribution boxes divert partial currents into the module and mounting frames, cable shielding, and earthing systems. Cable shields, appropriately sized, connect to air-termination systems at high points and build earthing systems at entry points, facilitating safe dissipation of partial lightning currents.

    Photovoltaic System with Lightning Protection System (without Shielding)

    Employing a Photovoltaic system with a Lightning Protection System, DC cables remain unshielded. Solar modules and their frame should be multiply linked with the air-termination system of the lightning protection setup, ensuring partial lightning currents flow. Connect the Photovoltaic system's DC cables to a type 1 surge protection switch before the inverter, which diverts lightning currents and equalizes potential at times of high overvoltages due to lightning. If the cables connecting the inverter and the main distribution board are under 10 meters, a type 2 surge protection switch can be installed on the DC side of the inverter; for longer cables, this switch should be affixed on both sides of the inverter.

    When it comes to ensuring safety against lightning strikes for solar systems like balcony power plants with storage, there are two types of lightning protection systems available from Anker.

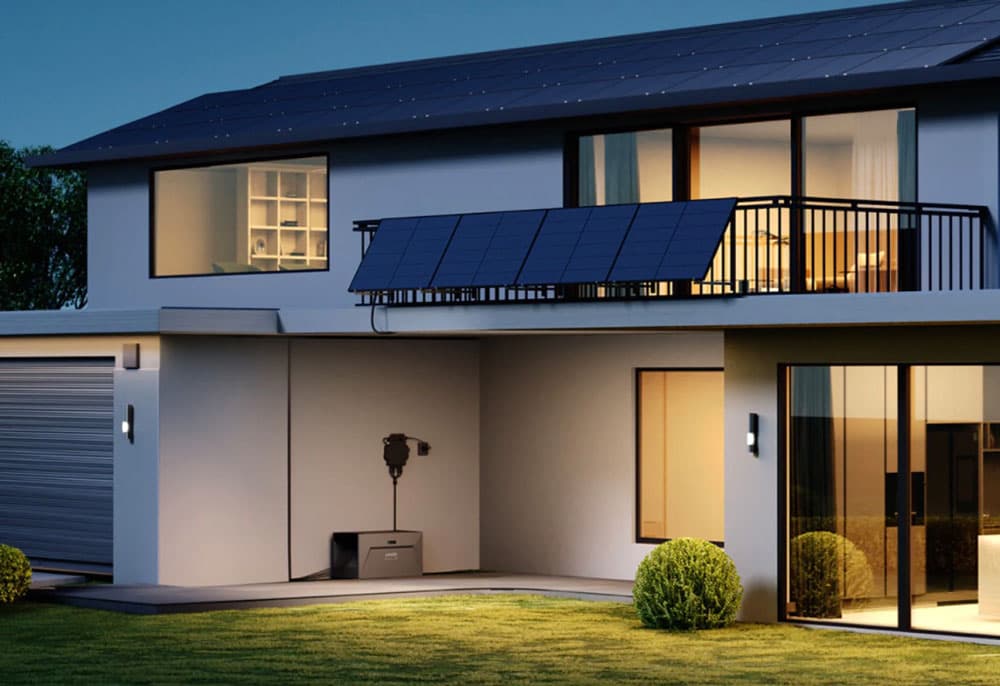

    Anker SOLIX Balcony Solar System (820W) with Storage (1600Wh) and Balcony Brackets is an innovative energy solution that can save you up to €7470 over 25 years. The system comes with durable Home-Storage LFP Battery Cells promising 6,000 cycles, while its real-time and historical data can be easily accessed via the Anker app. This user-friendly system offers a speedy 2-hour plug-and-play setup and the opportunity for maximum power generation with flexible angle and location options. Welcome to a sustainable future with the Anker SOLIX Balcony Solar System.

    Anker SOLIX Balcony Solar Power System (2*RS40B Panel 410W, Micro Inverter 600W/800W, Balcony Brackets)

    The Anker SOLIX Balcony Solar Power System promises an ideal combination of efficiency and sleek design, with 2*RS40B Panels (410W each), a Micro Inverter (600W/800W), and Balcony Brackets. It's a top-tier system operating at 23% efficiency, ensuring savings of up to €3,320 over 25 years with a 25-year guarantee of 84.8% efficiency. With an all-black surface, the system adds an advanced aesthetic to your backyard. Its 2-hour setup is quick and one of the easiest on the market. Plus, track your energy usage and savings in real-time or historically via the Anker App.

    {{component:"product", handle:"b5143", sku:"B514341D-EU"}}

    How Does Lightning Protection for Solar Systems Work?

    Wondering what happens if lightning strikes a solar system? Lightning strikes pose significant threats to solar systems, potentially causing severe damage to critical components, including those found in balcony power plant with storage device. Understanding how lightning protection systems function is essential for safeguarding solar installations. Key mechanisms include:

    Surge Protection Devices (SPDs): Installed at various points within the solar system, SPDs divert excess voltage from lightning strikes away from sensitive equipment, preventing damage caused by power surges.

    Grounding Systems: Effective grounding dissipates lightning energy safely into the ground, minimizing the risk of fires or equipment damage by providing a low-resistance path for electrical current.

    Shielding and Isolation: Shielding techniques involve enclosing sensitive equipment within metal enclosures or conduits, while isolation methods separate critical components from external conductors, minimizing the impact of lightning-related disturbances.

    Installation for Lightning Protection in Solar Systems

    Ensuring safety and integrity against lightning strikes during installation is paramount. This involves meticulous planning, adherence to industry standards, and a comprehensive risk assessment considering factors like geographical location and exposure to lightning-prone environments. Installation includes strategically placing lightning rods, implementing effective grounding systems, and integrating surge protection devices within the electrical circuitry to mitigate damage risks.


    In conclusion, implementing a lightning protection solar system is critical for safeguarding investments and ensuring uninterrupted energy generation. Understanding its importance, available types, and operational mechanisms empowers solar system owners to make informed decisions. Proper installation is essential for effective mitigation, with an ongoing exploration of innovative approaches to enhance protection remaining imperative.


    How Much Does Lightning Protection for PV Systems Cost?

    The cost of lightning protection for PV systems varies based on factors such as the PV system's size, location, the type of protection system installed, and the service provider. Typically, it ranges from €1,500 to €3,000.

    When Should I Install Lightning Protection for a Solar System?

    Private residences aren't legally required to install lightning protection for balcony solar systems. However, public buildings like schools, authorities, and other public institutions are obligated to connect balcony solar power plants to the grounding system. For personal residents, it is advisable to check if surge protectors are installed in the electrical panel to safeguard all cables and solar system wiring.

    What Should You Pay Attention to When Choosing a Lightning Protection System?

    When selecting a lightning protection system, it's crucial to prioritize adherence to solar system lightning protection regulations, ensuring the system's compliance and effectiveness. Conducting a thorough risk assessment based on factors like building height, location, and materials is essential to determine the appropriate level of protection needed. Opt for a system designed and installed by qualified professionals, utilizing high-quality materials to guarantee durability and performance. Regular maintenance and reliable support services should also be considered to ensure ongoing effectiveness.
