    Mount PV Modules Vertically or Horizontally: Which Is Better?

    • 5 min read

    Installing photovoltaic modules or PV is one of the best solutions to combat the rising cost of power. However, one of the main challenges for homeowners is deciding whether to mount PV modules vertically or horizontally.

    Both orientation has benefits that you won’t find in the other. But which one is the better option for your needs or preferences? Read on to learn more about maximizing solar energy production by choosing the right way to mount your PV.

    What Determines the Mounting Orientation of PV Modules?

    The mounting orientation plays a vital role in maximizing energy production and ensuring the longevity of the photovoltaic system. Choosing to mount PV modules vertically or horizontally is determined by several key factors.

    Geographic location tops the list, affecting the sun's angle and intensity throughout the day and seasons. Homeowners in northern latitudes might favor a horizontal setup to capture lower sunlight angles during winter. At the same time, those closer to the equator might opt for vertical mounting due to the higher sun positions.

    Roof shape and structure present another major consideration. Sloped roofs often complement horizontal mounting, aligning with the roof's angle to enhance functionality and visual appeal. Conversely, vertical installation might benefit flat roofs or unique architectural designs, allowing for easier placement and maintenance.

    The roof's type and orientation directly impact the shading potential, which can significantly reduce a solar system's efficiency. Vertical mounting can sometimes minimize shading from nearby trees, buildings, or other obstructions, which is critical in densely built environments.

    A household's specific energy needs and consumption patterns influence vertical and horizontal mounting choices. Homes with higher midday energy consumption might find horizontal mounting more effective, given the orientation's ability to capture peak sunlight. In contrast, vertical mounting can better capture morning and late afternoon sunlight, catering to households with varied energy use throughout the day.

    Additionally, local weather patterns, including the frequency of snow, rain, and dust, impact the decision. Vertical mounting can reduce snow accumulation and facilitate easier cleaning from rain, enhancing efficiency in certain climates.

    Benefits and Drawbacks of Vertical Installation

    Vertical installation of photovoltaic panels, where panels are mounted perpendicular to the ground, offers some unique advantages and challenges compared to more traditional, angled setups. Here's a breakdown of the benefits and drawbacks:

    Pros

    1. Enhanced Performance in Specific Climates

    PV module vertical mounting can be particularly advantageous in regions with significant snowfall. Snow slides off more easily from vertically mounted panels, reducing the risk of prolonged coverage that impairs energy generation. This setup also aids in self-cleaning during rainy periods, minimizing dust accumulation and maintenance requirements.

    1. Improved Shading Management

    Vertical installation often mitigates shading issues, especially in densely populated areas with numerous obstructions. This advantage ensures more consistent sunlight exposure, optimizing the photovoltaic system's energy output throughout the day.

    1. Aesthetic Considerations

    Some homeowners prefer the appearance of vertically mounted panels, as they can blend more seamlessly with certain architectural styles. This aesthetic appeal can enhance the visual harmony between the solar array and the overall property design.

    1. Space Utilization

    For properties with limited roof space, vertical mounting offers a practical solution. This orientation allows for installing more panels within a confined area, maximizing the available surface for solar energy capture.

    Cons

    1. Potential Energy Production Limits

    Despite its benefits, vertical mounting may underperform in capturing the maximum potential sunlight compared to horizontal installations. The angle of incidence might only sometimes align with the optimal sun path, leading to reduced overall energy generation in some locations.

    1. Increased Wind Load

    Vertical panels can catch more wind, potentially requiring stronger and more expensive mounting systems to ensure stability.

    Benefits and Drawbacks of Horizontal Installation

    Another way to place solar panels is by using horizontal installation. Many people are familiar with this orientation since it’s often how solar panels are depicted across various media. Below are some of the advantages and disadvantages of this option:

    Pros

    1. Maximized Solar Exposure

    Horizontal mounting aligns better with the sun's trajectory throughout the day. This orientation captures more direct sunlight during peak hours, which can significantly boost energy production, particularly in regions with ample sunlight.

    1. Uniform Load Distribution

    The horizontal mounting suits various roof types, especially sloped roofs, enhancing functionality and visual integration. This versatility simplifies the installation process and adapts to different architectural designs.

    1. Installation Versatility

    Horizontal mounting suits various roof types, especially sloped roofs, enhancing functionality and visual integration. This versatility simplifies the installation process and adapts to different architectural designs.

    Cons

    1. Higher Maintenance Requirements

    Over time, horizontal panels might accumulate more dirt, dust, and debris, necessitating regular cleaning to maintain optimal performance. This increased maintenance can be a drawback for homeowners seeking a low-maintenance solution.

    1. Shading Challenges

    Horizontal installations can be more susceptible to shading from nearby objects, particularly in areas with significant tree cover or taller buildings. This shading can reduce the efficiency of the solar panels and diminish the overall energy yield.

    Application of PV Modules in Horizontal and Vertical Installation

    Photovoltaic (PV) modules can be installed in various orientations, each suited to different settings and purposes. Choosing whether to install PV modules horizontally or vertically depends primarily on the available space, the angle of sun exposure, and specific structural considerations. Here’s where each installation method is most applicable:

    Horizontal Installation

    • Large Rooftops:Ideal for residential or commercial buildings with expansive roof areas. Horizontal installation allows for maximizing the surface area covered by PV modules.
    • Ground-Mounted Systems:Suitable for open fields and large ground spaces where land is abundant. This allows for easy maintenance and optimal alignment with the sun's path.
    • Agricultural Settings:Used in agrivoltaics, where solar panels are installed above crops. This not only generates electricity but also provides shade to plants, reducing water loss and potentially increasing yield.

    Vertical Installation:

    • Urban Buildings:Perfect for the facades of high-rise buildings where roof space is limited or already utilized for other purposes such as recreational areas.
    • Noise Barriers:Often used alongside highways where they can act as sound barriers while also generating electricity.

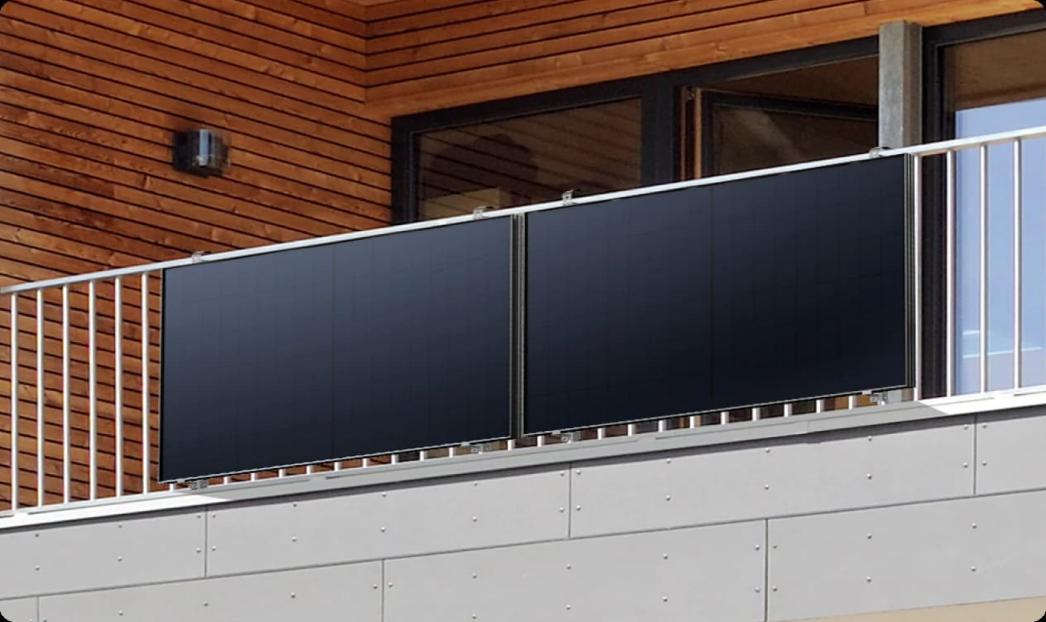

    • Balconies and Railings: Particularly effective in apartment settings where horizontal space is scarce. This method allows residents to use a balcony power plantto generate their own power without sacrificing usable outdoor space.

    Given the spatial constraints and aesthetic considerations in urban homes, a product like the Anker SOLIX balcony power plant can be particularly valuable. Designed for vertical installation, the SOLIX system is not only space-efficient but also enhances the visual appeal of your balcony. With its high efficiency and long-term performance guarantee, it represents an ideal solution for urban dwellers aiming to adopt solar energy seamlessly and stylishly. This makes the Anker SOLIX an excellent choice for turning compact urban outdoor spaces into sustainable energy sources.

    {{component:"product", handle:"b5143", sku:"B514341J-EU"}}

    Conclusion

    Deciding to mount PV modules vertically or horizontally depends on various factors, including geographic location, roof structure, and specific energy needs. Whether installed vertically or horizontally, each orientation presents unique benefits and challenges. Understanding these can guide individuals and businesses in making informed decisions about solar installations, ultimately maximizing efficiency and leveraging the advantages of solar technology to meet energy needs effectively and sustainably.

    FAQs

    How Does the Orientation of PV Modules Impact Their Energy Efficiency?

    The orientation of PV modules significantly influences their energy efficiency. Horizontal installations generally capture more sunlight throughout the day, making them highly efficient in regions with consistent solar exposure. They benefit from optimal angles and minimal shading, producing higher energy. In contrast, vertical installations may receive less direct sunlight, particularly in the middle of the day, but they can still be effective in specific settings, such as urban areas with limited roof space.

    Are There Specific Advantages To Using Vertical PV Modules on Balconies?

    Yes, vertical PV modules on balconies offer unique advantages. They are particularly suited for urban environments where rooftop space is limited. These installations allow apartment dwellers to generate renewable energy by utilizing balcony space. Vertical modules can also contribute to the aesthetic appeal of the building, blending seamlessly with the architectural design. This approach maximizes space efficiency and allows greater participation in sustainable energy practices, even in densely populated areas.
